You approve a hat proof on your screen, and it looks sharp. The lettering is clean, the spacing feels balanced, and the logo seems ready for production. Then the finished cap arrives. The letters look fuzzy, a curved edge has puckered, and the smallest detail has disappeared into the fabric.
That result usually isn't caused by the artwork alone. Embroidery stitch types are construction choices, and each one behaves differently when it travels across a structured crown, a panel seam, or a small curved logo area. A stitch that works beautifully on a flat jacket can become unstable on a cap.
This guide approaches the subject like a digitizer working on hats every day. You'll learn how stitch families work, which machine stitches suit outlines and filled shapes, how underlay and density affect clarity, and when specialty effects such as puff or appliqué make commercial sense. For a broader look at the planning process behind custom headwear, the Raccoon Transfers hat guide provides useful production context.
Why Stitch Choice Makes or Breaks Your Hat Logo
A hat gives embroidery less room for error than a flat garment. The front panel curves away from the needle, the center seam can interrupt a clean path, and structured caps often contain buckram that resists smooth movement. If the digitizer uses a dense fill where a narrow satin column would be cleaner, the thread may build up, push against the fabric, or soften the edge of the logo.
The opposite problem happens too. A small logo may look crisp in a digital proof because the artwork has perfect pixels, but the physical version depends on needle penetrations, thread tension, fabric support, and the direction of each row. Thin outlines can break up. Tiny counters in letters can close. Long satin stitches can pull or snag when they span too wide an area.
A logo has zones, not just shapes
Think of a cap logo as a collection of zones:
- Outer outlines need controlled running or stroke stitches.
- Narrow lettering and borders usually benefit from satin stitch.
- Broad letters, icons, and background shapes need a stable fill or tatami structure.
- Raised headline elements may use puff, but only where the artwork has enough room to stay readable.
- Seams and sharp curves call for careful pathing and sometimes simplified detail.
That distinction matters because two parts of the same logo may need different stitch types. A badge might use a running stitch around its perimeter, satin for the border, tatami for the interior, and a small appliqué section to reduce dense thread coverage.
Practical rule: Choose the stitch for the physical zone it must cover, not for the name of the design style you like on screen.
Small businesses often face this issue when ordering staff hats, event caps, or branded merchandise. A simple logo can be more reliable than an overworked file, especially when the order needs to repeat across several cap styles. A decorator should be able to explain which elements will be simplified, which will be raised, and how the design will be tested before production.
The useful question isn't “Which stitch looks most impressive?” It's “Which stitch preserves the logo's edge, texture, and legibility on this cap at this size?” Once you ask that, the rest of the decision becomes much easier.

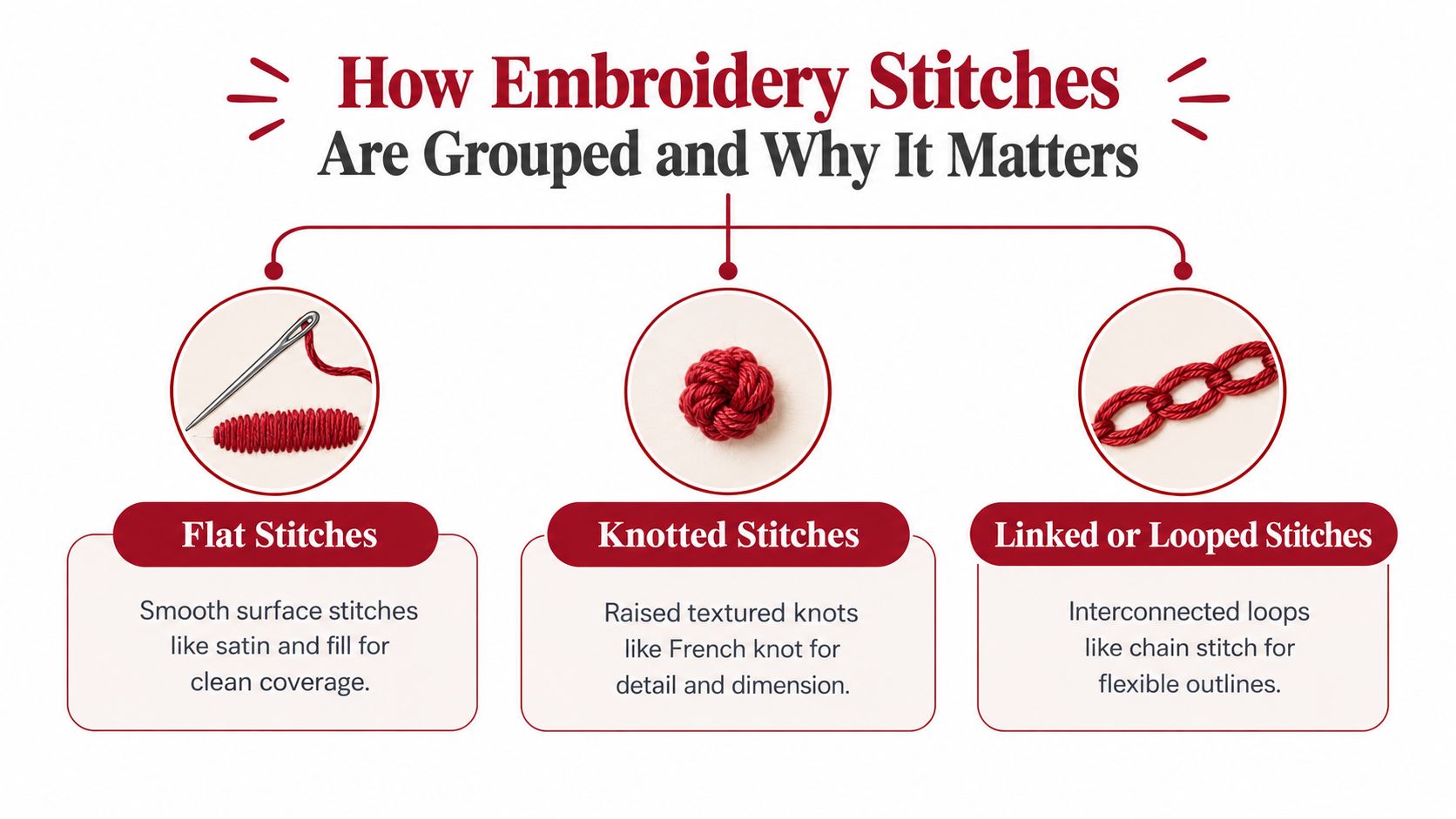

How Embroidery Stitches Are Grouped and Why It Matters
A cap logo may look simple on screen, yet its stitch structure determines how it handles a crown's curve, seams, and limited decoration area. Embroidery terms become easier once you group them by how thread lies on the fabric: flat, knotted, and linked or looped. The history of embroidery traces these broad structures, which still provide a useful starting point for choosing stitches on structured caps.
Flat stitches create surface coverage
Flat stitches place thread directly across the material. Satin and fill stitches fit this family in machine embroidery because they cover the surface without depending on knots or connected loops. Satin gives a smooth, reflective finish, while tatami gives broader areas a flatter, more textured look.
Satin works like a narrow paintbrush, laying a polished strip along a small letter or border. Fill stitch works more like repeated rows covering a larger patch. On a structured cap, that difference affects thread buildup, shine, stability, and how well the design follows the crown's curve. Narrow elements can usually carry satin, while broader logo areas need a fill structure rather than long stitches spanning the entire shape.
Knotted stitches add raised detail
Knotted stitches wrap or tie the thread to create texture and dimension. French knots are a familiar hand-embroidery example. They can add a tactile accent, but they rarely serve as the main production method for a standard machine-embroidered cap logo.
A knot may suit a decorative point with enough room to remain visible. It becomes less practical for small lettering, repeated outlines, or a logo that must run consistently across many hats. On a compact front panel, excess texture can make the mark feel crowded instead of raised.
Linked and looped stitches connect movement
Linked or looped stitches, including chain stitch, form a connected path. Their flexible, decorative appearance can suit expressive outlines, vintage lettering, or chenille-style effects. The surface looks different from satin's continuous shine and tatami's flatter rows, so the choice should match both the logo's character and the cap zone.
Cross-stitch shows how a simple structure can adapt across materials and traditions. The earliest existing example dates to AD 850, according to the documented history of embroidery. Its X-shaped construction helps explain why stitch structure remains useful today, even when the work is digitized for a machine.
The first hand-embroidery machine arrived in 1829, according to the same documented history, shifting production from entirely hand-executed work toward industrial methods. Modern machines improved speed and repeatability, but the underlying behavior remains familiar. Flat coverage, knots, and loops place thread differently, so digitizers use these families to judge how a logo will hold its edges, texture, and legibility on a curved cap.
The Essential Machine Embroidery Stitches Compared
Machine embroidery uses a smaller group of workhorse stitches than hand-embroidery books might suggest. For hat logos, the most important choices usually involve running or stroke stitches, satin stitch, and fill or tatami stitch. Chain, couching, seed, cross-stitch, appliqué, and chenille can add character, but they serve more specialized purposes.
A running stitch moves along a path with a light, linear appearance. It's useful for fine outlines, interior detail, and design elements that would become too heavy if covered with satin. Backstitch reinforces a line with a stronger, more continuous look, while stem stitch can give curved lettering or organic outlines a slightly raised, rope-like character.
Satin stitch lays closely spaced stitches across a narrow column. It reflects light and creates a polished edge, so it works well for borders, compact letters, and clean logo details. Practical digitizing guidance recommends keeping satin columns around 8 to 10 mm wide before changing to fill, because wider spans can become unstable, as explained in this guide to satin versus fill stitch.
Tatami, also called fill stitch, covers larger areas with rows of shorter stitches. It's the practical choice for broad icons, large lettering, shields, and background shapes because it spreads coverage across the area instead of asking long satin stitches to cross it.
| Stitch Type | Best For on Hats | Look and Texture | Watch Out |
|---|---|---|---|
| Running or stroke | Fine outlines and small interior details | Light, linear, flexible | Can look weak if used for a bold border |
| Backstitch | Defined outlines and lettering accents | Firm, continuous line | May crowd tight curves |
| Stem stitch | Organic curves and decorative outlines | Slightly raised, rope-like | Less suitable for broad coverage |
| Satin stitch | Narrow columns, borders, and compact letters | Smooth, glossy, crisp | Wide spans can become unstable |
| Fill or tatami | Large icons, broad letters, and backgrounds | Flat, lightly textured coverage | Too much density can stiffen or pucker fabric |
| Chain stitch | Decorative outlines and vintage effects | Linked, looped texture | Fine detail can lose precision |
| Couching | Bold surface accents and specialty decoration | A laid thread held by smaller stitches | Needs careful anchoring |
| Seed stitch | Texture and scattered decorative detail | Broken, organic surface | Doesn't create clean solid coverage |
| Cross-stitch | Pixel-like or heritage-inspired motifs | Repeating X-shaped pattern | Small hat logos may lose clarity |
| Appliqué | Large shapes with fabric contrast | Fabric surface with stitched edge | Cutting and edge finishing must be accurate |
| Chenille | Varsity and soft raised graphics | Fuzzy, looped, dimensional | Fine detail is limited |
The best result often comes from combining stitches rather than forcing one stitch to do everything. For more hand and machine decoration ideas, decorative sewing ideas can help you compare surface treatments before you commit to a cap-ready file.

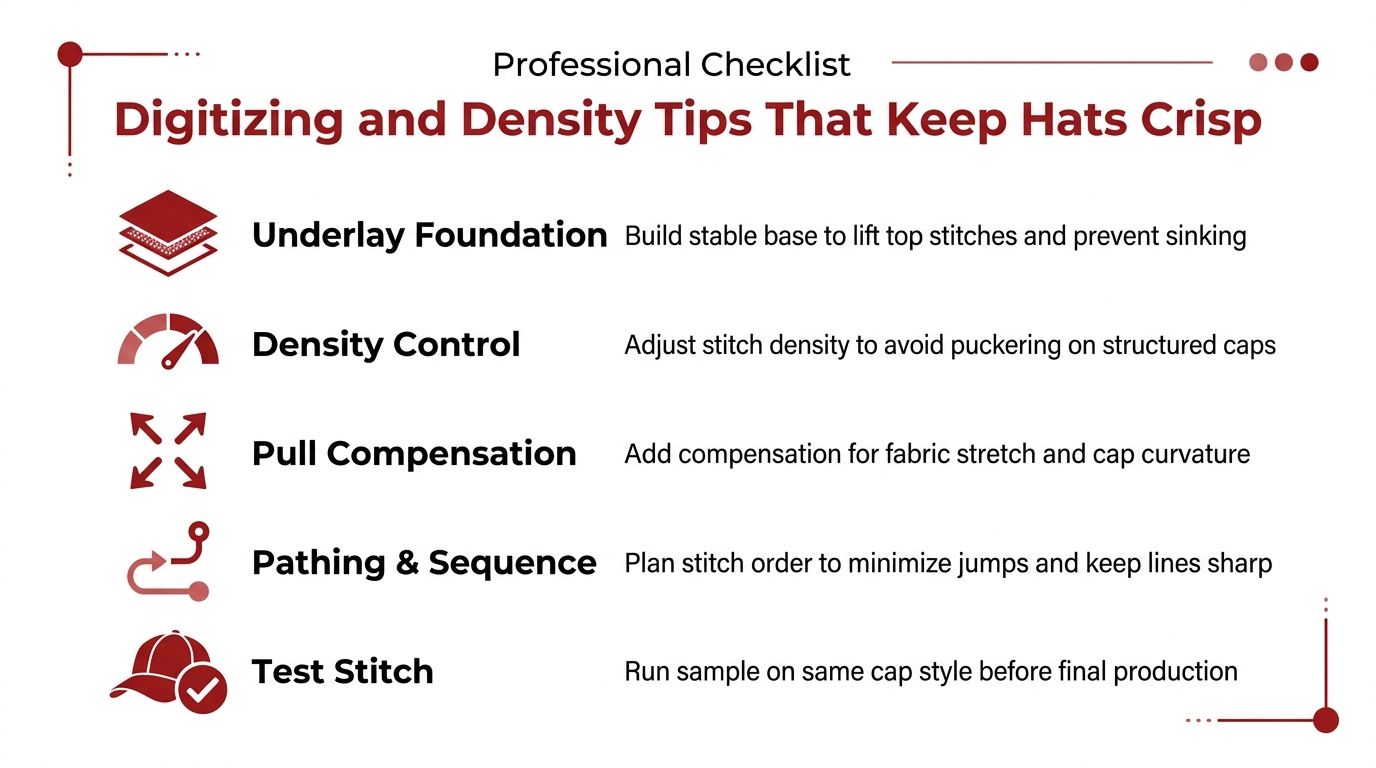

Digitizing and Density Tips That Keep Hats Crisp
A clean hat logo starts before the machine runs. Digitizing tells the machine where to stitch, in what order, at what density, and with which foundation. On a curved cap, those instructions determine whether a line follows the crown smoothly or fights the material.
Underlay supports the visible design
Underlay is the hidden foundation placed before the top stitches. It stabilizes the fabric, helps lift the thread, and reduces puckering. Technical guidance emphasizes its importance under satin and fill, with fill underlay commonly using wider row spacing and a direction perpendicular to the top layer for improved coverage and dimensional stability, as shown in the embroidery stitch matrix.
The visible stitches create the look. The underlay gives them something stable to sit on.
For a satin letter, an edge run or center walk can support the column before the glossy top stitches cover it. For a tatami shape, a lighter perpendicular foundation can prevent the top rows from sinking into the cap fabric.
Width, direction, and density work together
Keep satin for narrow columns and borders. The practical limit is about 8 to 10 mm, according to satin and fill stitch guidance. If a letter stroke or logo panel grows wider, divide it intelligently or convert it to a fill structure rather than stretching satin across the full area.
Fill rows should follow the shape instead of ignoring it. On a curved emblem, changing stitch direction can help the surface look intentional and reduce the visual effect of a rigid grid. A dense file isn't automatically a durable file. Excessive needle penetrations can stiffen the area and encourage puckering, while weak density may leave gaps or allow the cap fabric to show through.
Use a proofing checklist
Before approving a cap file, ask:
- Logo scale: Can the smallest letters keep their counters open at the final size?
- Placement: Will the design cross the center seam or sit entirely on one panel?
- Stitch roles: Are outlines, narrow columns, and broad areas assigned appropriate stitches?
- Underlay: Does the foundation match the satin, fill, fabric, and cap structure?
- Sample test: Has the design been stitched on the same style of cap, not merely previewed on a screen?
For a practical workflow on converting artwork into a production-ready file, use this guide on how to digitize a logo for embroidery. The proof should show more than color and placement. It should help you judge whether the stitch plan can survive the cap's curve.
Thread Backing and Cap Construction That Change Every Stitch
The same embroidery file can behave differently on a 6-panel structured snapback and a soft unstructured dad hat. The snapback usually has a firmer front supported by buckram, while the dad hat flexes more naturally and can allow stitches to sink or distort if the backing and underlay aren't matched to the material.
Match thread to the finish
Rayon thread gives embroidery a soft sheen that suits polished brand marks and fashion-oriented lettering. Polyester is often chosen when the order needs a practical, durable thread that handles regular wear and laundering. Metallic thread can add sparkle, but it also changes the tension and handling requirements, so it deserves a test rather than an automatic substitution.
Color affects legibility, too. A tone-on-tone logo may look refined on a flat proof, but its stitch direction and texture need to create enough contrast for the mark to remain visible. A high-contrast satin border can sharpen an edge, while a broad fill in the same color may create a quieter effect.
Backing controls movement
Tearaway backing can suit stable cap fronts and designs that don't need a permanent support layer. Cutaway backing offers continuing stabilization and may be more appropriate when the fabric stretches or the design places substantial tension on the material. The choice depends on the cap, the logo, and the way the finished product will be worn.
A structured front can tolerate a firm design, but a thick seam still creates a physical obstacle. A digitizer may need to redirect a path, reduce detail near the seam, or adjust compensation so the logo doesn't pull inward as it crosses uneven ground.
Construction changes the brief
A small side or left-chest-style mark translated onto a hat front may need simpler lettering than a larger central badge. A full front design has more room for layered structure, but it also encounters more curvature and may need careful sequencing from the center outward.
Use the cap material as part of the design brief. The hat fabric and material guide can help you identify whether the blank is structured, soft, stretchy, woven, or suited to a particular decoration method.
For a repeat wholesale order, ask the decorator to test the exact blank, thread family, backing, and placement. A file that works on a firm front may need edits for a washed cotton cap. That isn't a failure of the original design. It's normal production adaptation.

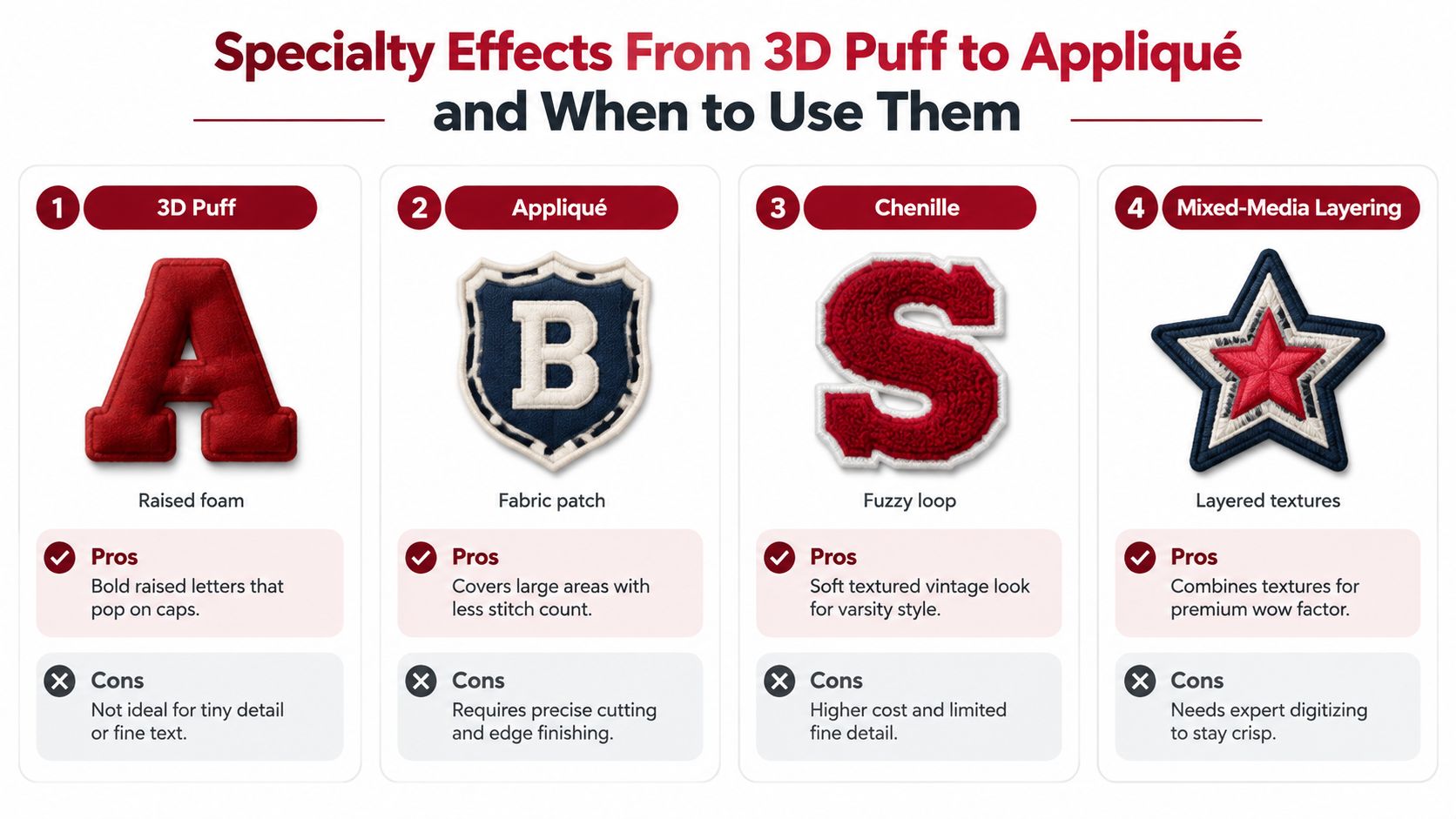

Specialty Effects From 3D Puff to Appliqué and When to Use Them
Specialty effects can make a logo memorable, but each effect adds a production decision. 3D puff places foam beneath selected stitches so letters or shapes rise above the cap. It works especially well on structured fronts with bold, uncomplicated forms. It doesn't suit tiny counters, fine outlines, or delicate text because the foam needs enough room to expand and be covered cleanly.
Appliqué replaces some thread coverage with fabric. That can reduce the amount of stitching required for a large color block while introducing a contrasting texture or material. The edge still needs precise satin or another finishing stitch, and inaccurate cutting can leave the shape looking uneven. For examples of appliqué-focused decoration, browse these ChoirBuy appliqué designs.
Choose drama according to the order
Current 2026 trend coverage describes growing interest in textured, dimensional decoration, including 3D puff on structured hats, tone-on-tone micro embroidery, oversized typography, layered fills, metallic or iridescent thread, and appliqué-mixed media effects, as discussed by True Digitizing's embroidery trend coverage. Those ideas can look excellent, but a wholesale buyer also has to consider stitch count, turnaround, cost, and repeatability.
Chenille creates a soft, fuzzy, varsity-style surface with strong visual character. Mixed-media layering can combine appliqué, satin, fill, puff, and specialty thread in one mark. Both require careful sequencing and testing because every added layer affects thickness, edge control, and registration.
Use a specialty effect when it improves recognition or reinforces the brand, not simply because the effect is available.
For a visual introduction to raised embroidery equipment, this 3D embroidery machine resource provides relevant context. You can also use the video below to see how dimensional and decorative approaches may fit into a broader embroidery workflow.
A simpler satin and fill combination may be the smarter choice for staff hats, team orders, or repeat merchandise. It usually gives the decorator fewer variables to control, which helps maintain consistent edges and color placement across a run. Eco-friendly thread options are also becoming more standard, so sustainability can be part of the material conversation without sacrificing a clear stitch plan.
Your Next Hat Order Made Simple
Start with the logo's physical job. Identify the placement, the available area, the smallest lettering, and whether the design sits across a seam or on a single panel. Then assign each zone a stitch family.
A practical decision flow looks like this:
- Outline the shape: Use running, backstitch, or stem-style construction when the design needs a controlled line.
- Build narrow detail: Choose satin for compact lettering, borders, and columns that stay within its workable width.
- Cover broad areas: Use tatami or another fill structure for large icons, shields, and backgrounds.
- Check support: Match underlay, backing, thread, and density to the cap's firmness and stretch.
- Add effects selectively: Choose puff, appliqué, chenille, or metallic thread only when the added texture supports the brand and remains legible.
Dirt Cheap Headwear handles blank headwear, custom embroidery, proofs, and decorated orders for businesses, teams, creators, events, and resellers. Its custom service supports low minimums starting at six pieces per logo, with options for flat embroidery, 3D puff, and fine-detail stitching. Review the proof against the actual cap style, not just the artwork on a monitor, and request a sample when curvature or specialty effects could change the result.
The right stitch type won't rescue artwork that's too detailed for its placement, but a thoughtful stitch plan can make a simple logo look professional and repeatable. Keep the cap construction, logo size, density, and intended use in the same conversation from the first quote to the final production check.
